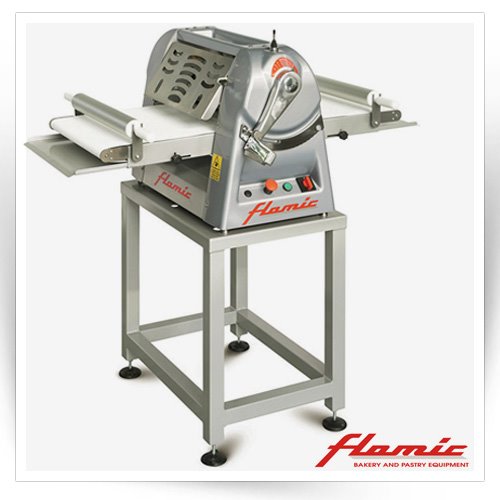

خمیر پهن کن flamic ایتالیا مدل SF450B
مدل : TB-flamic-SF450B
معرفی اجمالی محصول :
خمیر پهن کن flamic ایتالیا مدل SF450B
> SF450B / SF45
FEATURES
– Painted steel structure (on request stainless steel is also possible)
– Safety covers device in accordance with CE regulations
– Precise regulation on thickness of sheet by a graded scale
– Scrapers can be removed very easy
– Variable speed between infeed and outfeed belts assure regular dough sheet
– Tables can be raised when the machine is not in use to obtain more free space
– Reversal rolling belts by joystick.
– Conveyor belts speed fix on model SF450B or variable by potentiometer on model SF450BV
| DIMENSIONI | ||||||||||
| A | B | C | D | E | F | G | H | L | M | |
| SF450B-500 | 1120 | 1280 | – | – | 700 | 870 | 540 | 690 | – | 430 |
| SF450B-700 | 1520 | 1680 | – | – | 700 | 870 | 540 | 690 | – | 430 |
| SF450BV-500 | 1120 | 1280 | – | – | 700 | 870 | 540 | 690 | – | 430 |
| SF450BV-700 | 1520 | 1280 | – | – | 700 | 870 | 540 | 690 | – | 430 |
|
TECHNICAL FEATURES
|
|
|
TYPE
|
BENCH
|
|
ROLLER DIAM
|
60 mm
|
|
CONVEYOR BELT WIDTH
|
450 mm
|
|
CONVEYOR BELTS LENGHT
|
500 / 700 mm
|
|
EXIT SPEED BELT
|
50 cm/sec (or variable speed on mod. SF450BV)
———————–
30 m/min (or variable speed on mod. SF450BV) |
|
ROLLER GAP
|
0-35 mm
|
|
MOTOR POWER
|
0,55 kW
|
|
WEIGHT
|
90 Kg
|
|
STANDARD TENSION
|
230-400/3/50 for mod. SF450B
——————
230/1/50-60 for mod. SF450BV
|
