خمیر پهن کن flamic ایتالیا مدل SF500B
مدل : TB-flamic-SF500B
معرفی اجمالی محصول :
خمیر پهن کن flamic ایتالیا مدل SF500B
> SF500B / SF500BV
.jpg "خمیر پهن کن flamic ایتالیا مدل SF500B مدل : TB-flamic-SF500B 1")
.jpg "خمیر پهن کن flamic ایتالیا مدل SF500B مدل : TB-flamic-SF500B 2")
FEATURES
– Painted steel structure (on request stainless steel is also possible)
– Safety covers device in accordance with CE regulations
– Precise regulation on thickness of sheet by a graded scale
– Scrapers can be removed very easy
– Variable speed between infeed and discharge belts assure regular dough sheet
– Tables can be raised when the machine is not in use to obtain more free space

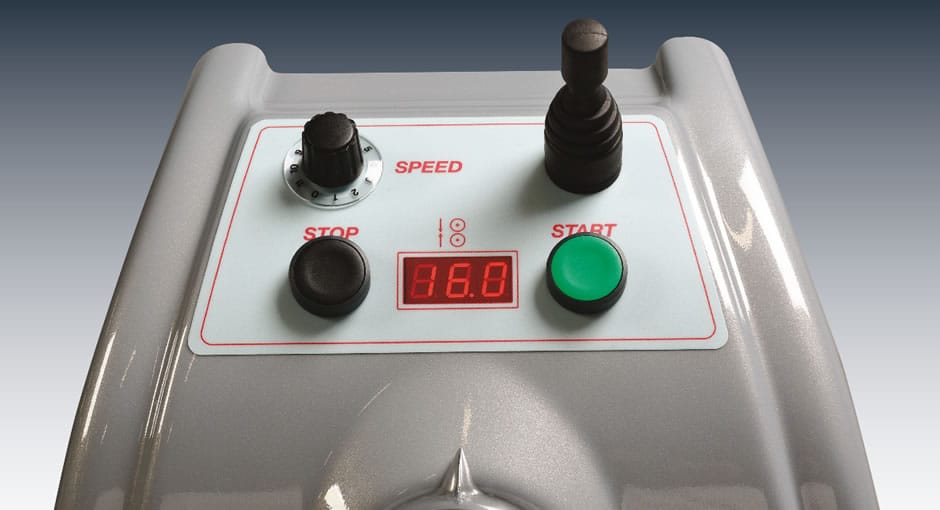

– Reversal rolling belts by joystick.
– Conveyor belts speed fix on model SF500B or variable by potentiometer on model SF500BV
| DIMENSIONS | ||||||||||
| A | B | C | D | E | F | G | H | L | M | |
| SF500B-850 | 1250 | 1860 | 2110 | 150 | 770 | 910 | 620 | 880 | 950 | 455 |
| SF500B-1000 | 1250 | 2160 | 2410 | 150 | 770 | 910 | 620 | 1030 | 1000 | 455 |
| SF500BV-850 | 1250 | 1860 | 2110 | 150 | 770 | 910 | 620 | 880 | 950 | 455 |
| SF500BV-1000 | 1250 | 2160 | 2410 | 150 | 770 | 910 | 620 | 1030 | 1000 | 455 |
|
TECHNICAL FEATURES
|
|
|
TYPE
|
BENCH
|
|
ROLLER DIAM
|
60 mm
|
|
CONVEYOR BELT WIDTH
|
500 mm
|
|
CONVEYOR BELTS LENGHT
|
850/1000 mm
|
|
EXIT SPEED BELT
|
50 cm/sec (or variable speed on mod. SF500BV)
———————————-
30 m/min (or variable speed on mod, SF500BV) |
|
ROLLER GAP
|
0-35 mm
|
|
MOTOR POWER
|
0,55 kW
|
|
WEIGHT
|
140 Kg
|
|
STANDARD TENSION
|
230-400/3/50 for mod. SF500B
———————————-
230/1/50-60 for mod. SF500BV
|
